Remote Firefighting Robot for High-Risk and Extreme Environments

The Fire Monitor Quadruped Robot is designed to support firefighting operations in environments where direct access can expose personnel to excessive heat, smoke, toxic substances, or other hazards.

Combining quadruped mobility, remote control, real-time video transmission, and a precision water cannon, the robot can approach fire scenes, deliver firefighting media, and provide operators with real-time visual information from a safer distance.

With its ability to traverse rubble, stairs, mud, uneven terrain, and slopes, the platform is suitable for industrial fires, chemical incidents, underground spaces, forest firefighting, and complex urban fire scenarios.

40+ m Water-Cannon Range
Long-range remote fire suppression

All-Terrain Quadruped Mobility
Designed for rubble, stairs, mud and uneven terrain

Real-Time Remote Operation
Live video transmission for remote firefighting

Optional Fire Extinguisher Module
Interchangeable firefighting configuration

Key Features

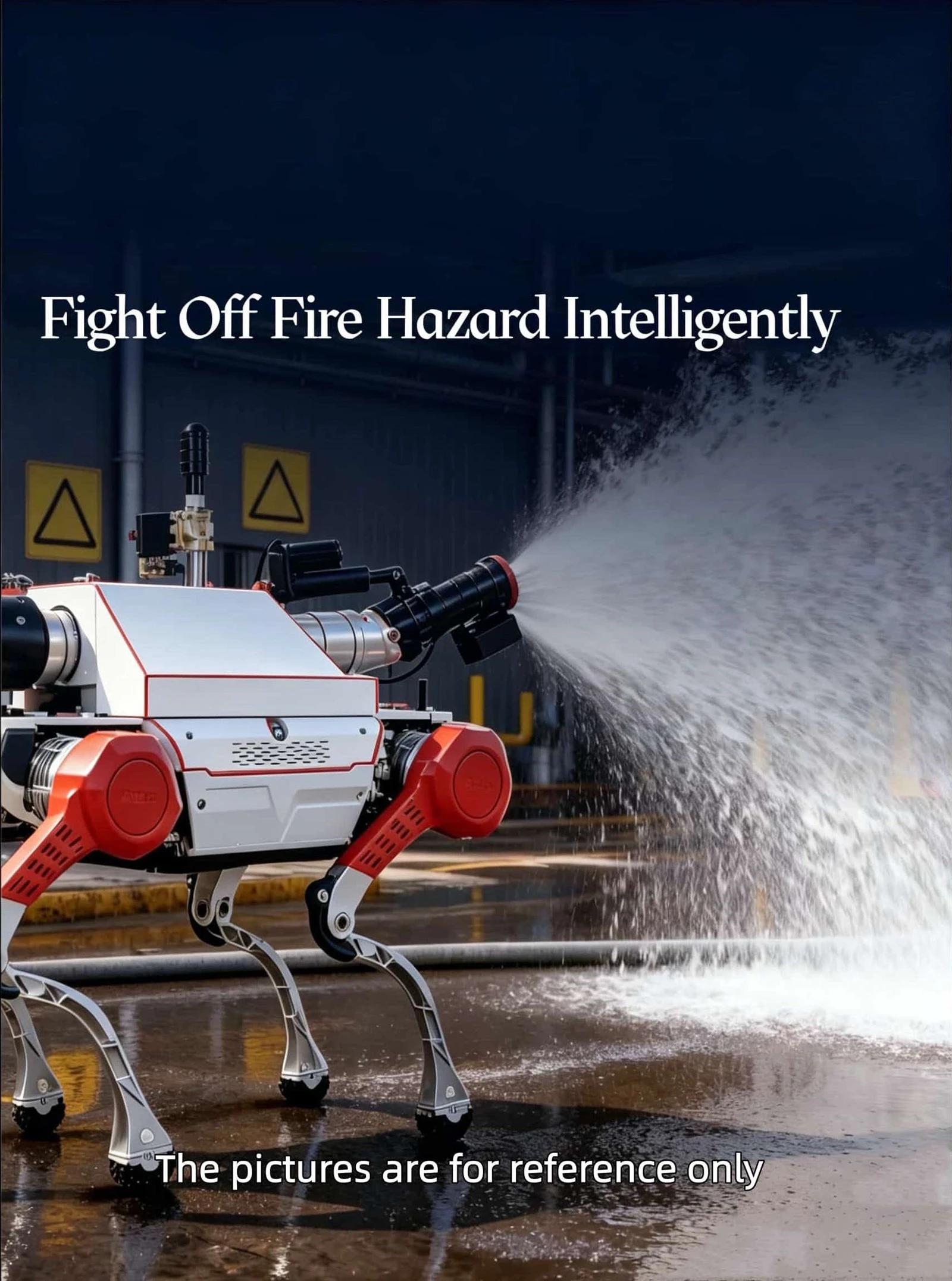

Dual-Mode Water Cannon for Precision Fire Suppression

The robot is equipped with a water cannon supporting both straight-stream and wide-spray modes.

The two spray modes allow operators to switch between concentrated fire suppression and wider-area coverage according to the fire scene.

The water cannon provides an effective range of more than 40 meters, while the maximum spray angle is ≥120°. Flow rate can reach ≥20 L/s.

Designed for Extreme Environments

The quadruped platform is designed to operate across difficult terrain and challenging fire scenes.

It can:

Traverse gravel and rubble

Cross ruins and uneven ground

Climb stairs

Move through tunnels

Operate on muddy terrain

Handle slopes up to 30°

Wading capability up to 1 meter

The platform also incorporates a self-spray cooling function to support operation in high-temperature environments.

Remote Control and Real-Time Video Transmission

Firefighters can remotely control the robot while monitoring the fire scene through real-time video transmission.

This allows operators to assess changing fire conditions and control firefighting operations without immediately placing personnel directly in front of the fire source.

The communication system supports 4G, Wi-Fi, and radio communication, with a stated communication range of ≥500 m.

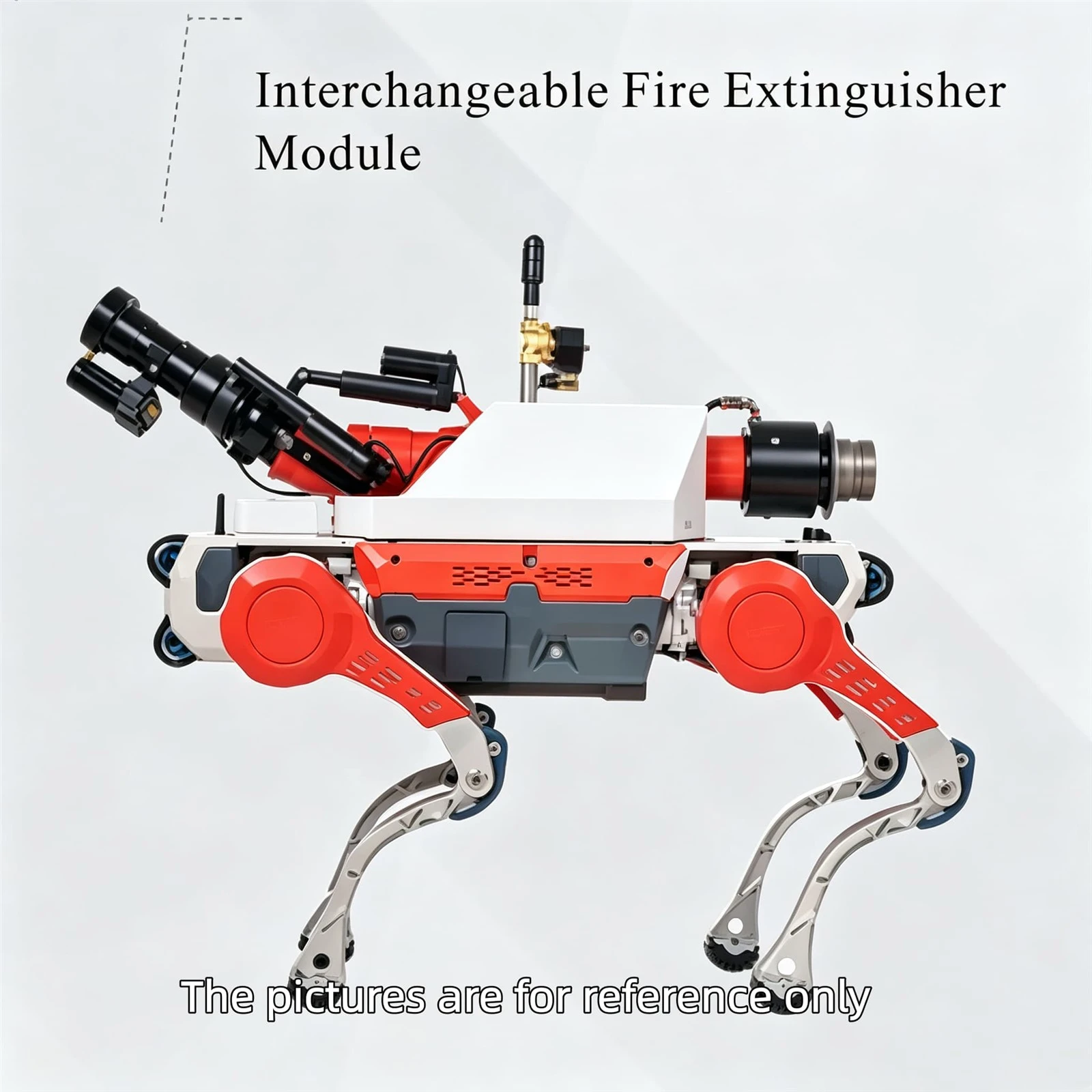

Interchangeable Fire Extinguisher Module

In addition to the water cannon configuration, the robot can be equipped with an interchangeable fire extinguisher module.

The optional module supports fire-extinguishing categories A, B, E, and F, with a fire-extinguishing agent capacity of ≥9 L and a jet distance of ≥3 m.

This provides additional flexibility when the application requires a firefighting medium other than water.

Technical Specifications


Mechanical Parameters Dimensions (Standing)：1150mm454mm905mm Weight：70kg Operating Temperature：-20℃~50℃ Operating Humidity：20%RH~80%RH Electrical Parameters Operating Time：≥3h Battery Capacity：22.4Ah Auto Charging：Supported Performance Parameters Protection Rating：IP65 Max Speed：2.9m/s Terrain Adaptability：Suitable for gravel, rubble, ruins, stairs, tunnels, uneven terrain, mud, etc. Max Slope Angle：≥30° Stair Climbing Height：≥16cm Water Cannon Firefighting (Optional) Spray Modes：Straight stream and spray (fog) modes Effective Range：>40m Max Spray Angle：≥120° Horizontal Rotation：±20° Pitch Angle：10° ~ +50° Performance：Straight stream / spray modes; remote wireless control; flow rate ≥ 20 L/s Spray Connection：Quick-connect interface; supports single DN80 line; Equipped with remote-controlled self-release function Self-Spray Cooling：Supported Fire Extinguishing Agent Module (optional) Fire Extinguishing Type：Categories A, B, E, F Fire Extinguisher Agent Capacity：≥9L Jet Distance：≥3m Fire Suppression Range：The maximum effective range in a standing posture is approximately 10.6 square meters (a sector with a radius of 4.5 meters and a central angle of 60°) Continuous Fire Extinguishing Time：≥30s Fire Situation Investigation and Identification：10x continuous optical zoom, supports thermal imaging, laser ranging, and rapid multi-target recognition and tracking functions. Equipped with visual intelligence to identify fire sources, enabling real-time guidance and precise firefighting. Others Emergency Stop：Equipped with both hardware and software emergency stop Controller Dimensions：≤380mm (L) ×240mm (W) ×48mm (H) (excluding joystick height) Display Size：10.1 inches Display Resolution：1920 × 1200, touchscreen supported Communication Module：4G / Wi-Fi / radio Communication Range：≥500m Sensor Configuration：LiDAR, RGB camera


Specifications above are based on the supplied product material and should be confirmed with the manufacturer for the final configuration. All Customization are Feasible!

Typical Firefighting Tasks

The Fire Monitor Quadruped Robot can support emergency teams with:

Remote fire suppression

Initial fire scene intervention

Fire source observation

Thermal and visual monitoring

High-risk area reconnaissance

Firefighting in confined spaces

Continuous monitoring after initial suppression

Firefighting material delivery or specialized module deployment

Its combination of mobility and remote firefighting capability makes it particularly useful when conventional firefighting vehicles or personnel cannot safely approach the fire source.

Application Scenarios

Industrial and Chemical Firefighting

Industrial facilities may contain flammable, explosive, or toxic materials. During a major incident, approaching the fire source can create significant risks for firefighters.

The quadruped robot can move toward the affected area remotely and use its water cannon to support initial fire suppression while providing operators with live information.

Confined Spaces and Underground Areas

Energy storage containers, underground parking garages, metro systems, tunnels, and other enclosed spaces can rapidly accumulate smoke and heat.

The robot can enter these environments and support firefighting operations while reducing the need for personnel to immediately enter the affected area.

Forest and Wildfire Support

The quadruped platform can traverse rugged mountain trails, rocky slopes, mud, and uneven terrain.

It can support fire suppression near the fireline and continue monitoring the area after firefighting operations to help identify potential re-ignition risks.

Urban Complex Fires

The robot can climb stairs and enter buildings such as shopping malls and office facilities.

In smoke-filled environments, remote visual and thermal information can help operators locate fire sources and support evacuation and firefighting operations.

Why Use a Fire Monitor Quadruped Robot?

Traditional firefighting equipment can be difficult to deploy when access routes are blocked, terrain is unstable, or temperatures and smoke levels become dangerous.

A quadruped firefighting robot provides an additional remote-operated option for these situations.

Key benefits include:

Remote operation from a safer position

Long-range water delivery

Flexible straight-stream and spray modes

All-terrain quadruped mobility

Real-time video transmission

Operation in smoke-filled or hazardous areas

Support for industrial and urban firefighting

Optional fire-extinguishing agent module

Self-spray cooling for high-temperature operations

The robot is designed to complement professional firefighting teams, providing an additional tool for situations where direct human access is difficult or unsafe.

FAQ

What is a Fire Monitor Quadruped Robot?

It is a remote-operated quadruped robot designed to support firefighting and fire monitoring operations in hazardous or difficult-to-access environments.

How far can the water cannon spray?

The water cannon has an effective range of more than 40 meters according to the supplied product specifications. The product material also describes a maximum range of up to 60 meters under its stated configuration. Final performance should be confirmed according to the selected configuration and operating conditions.

Does the robot support different spray modes?

Yes. The water cannon supports both straight-stream and spray/fog modes, allowing operators to select concentrated or wider-area firefighting according to the situation.

Can it operate on rough terrain?

Yes. The robot is designed for gravel, rubble, ruins, stairs, tunnels, mud, and other uneven terrain. It supports slopes of up to 30° and stair climbing heights of at least 16 cm.

Can the robot operate in high-temperature environments?

The robot is designed for an operating temperature range of -20°C to 50°C and includes a self-spray cooling function. Actual deployment near high-temperature fire sources should be evaluated according to site conditions and operating procedures.

Can the Fire Monitor Quadruped Robot be remotely controlled?

Yes. The platform supports remote operation and real-time video transmission, allowing operators to monitor and control the robot without needing to remain immediately beside the fire scene.

Does it only use water for firefighting?

No. In addition to the water-cannon configuration, an interchangeable fire extinguisher module is available. The supplied specifications list support for fire categories A, B, E, and F.

What industries can use this firefighting robot?

Potential applications include chemical plants, energy facilities, industrial sites, underground facilities, tunnels, parking garages, forest firefighting, and complex urban fire scenarios.

Can the robot be customized?

The platform supports different firefighting configurations and an interchangeable fire extinguisher module. Specific customization options should be confirmed according to the required application and final system configuration.
